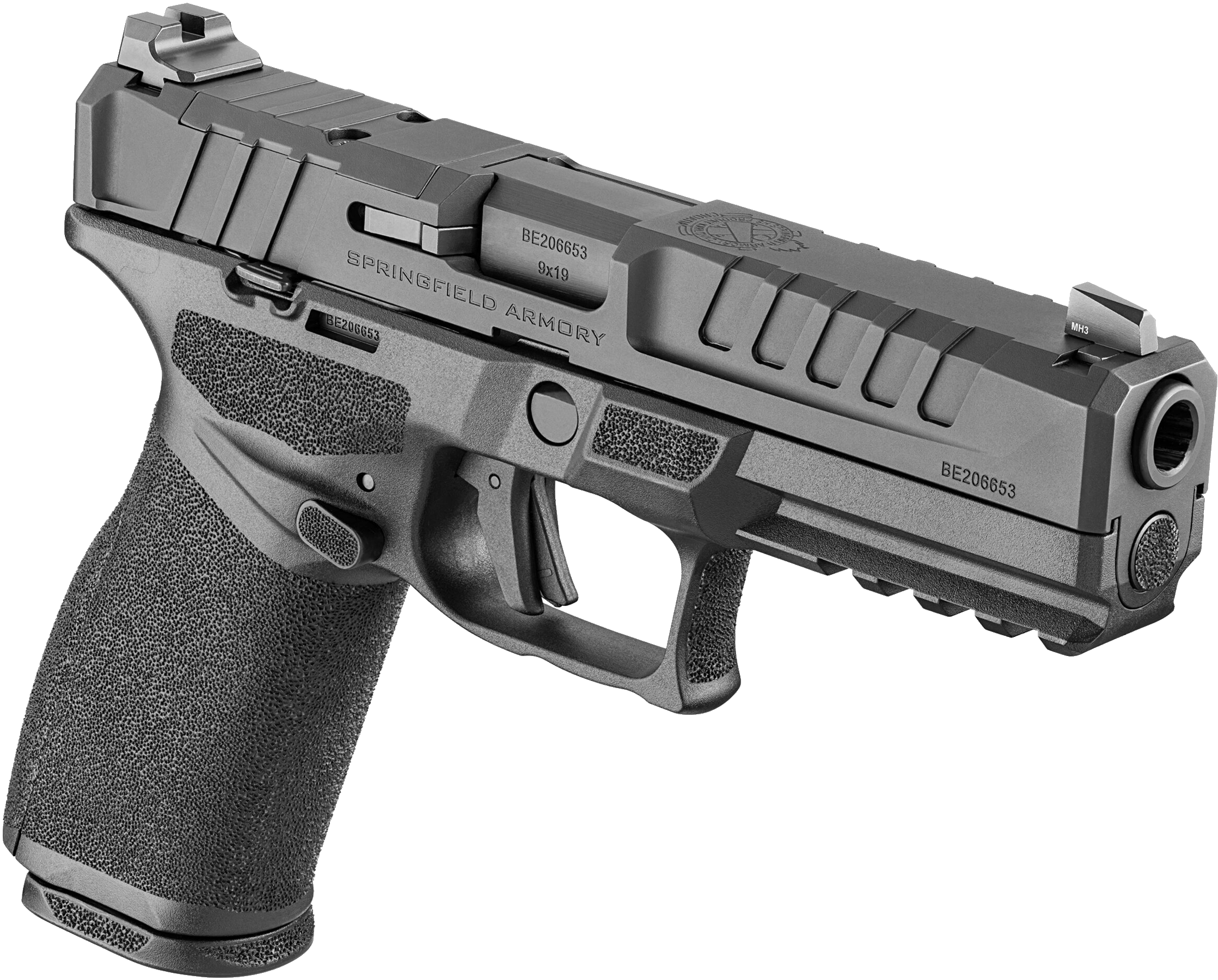

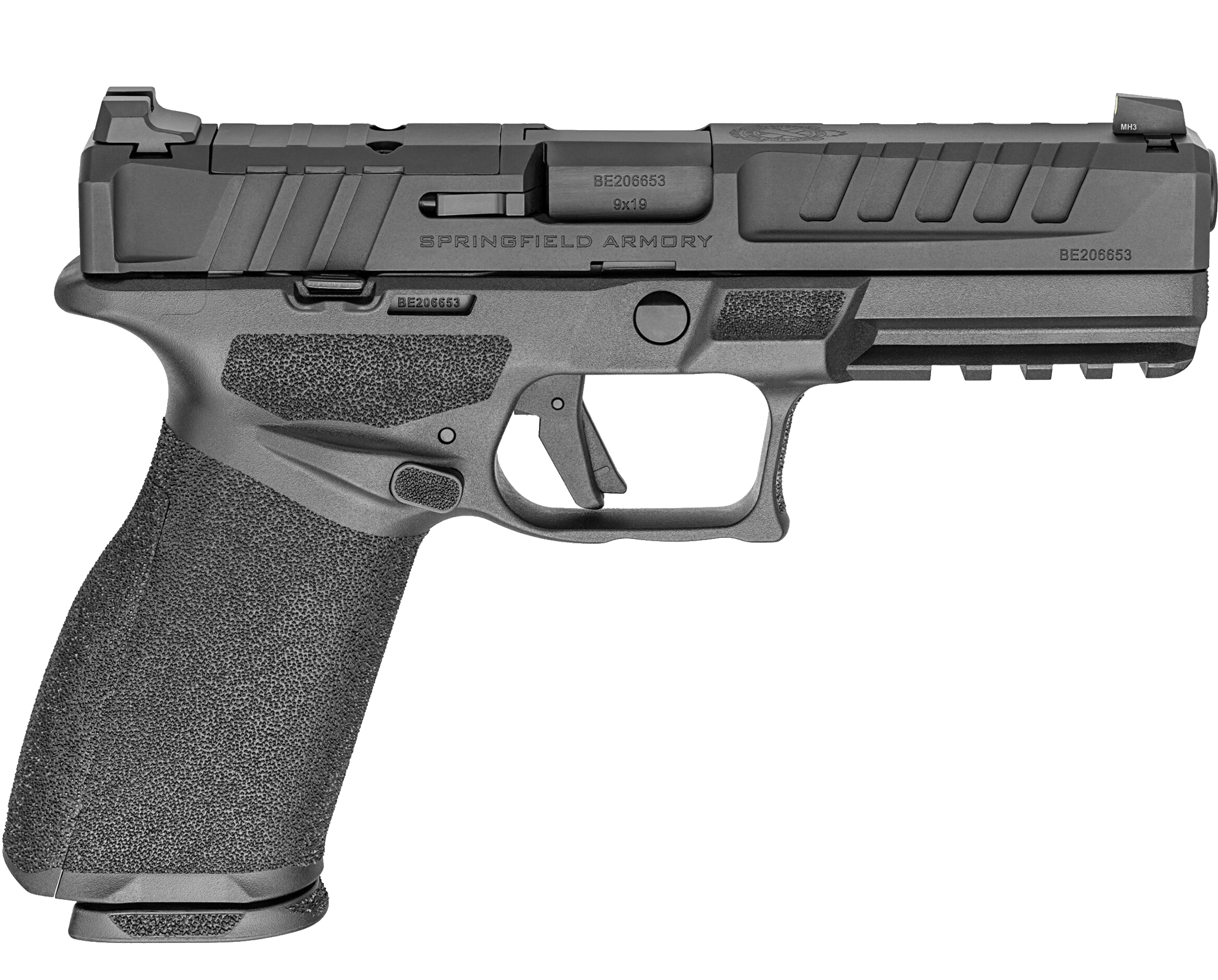

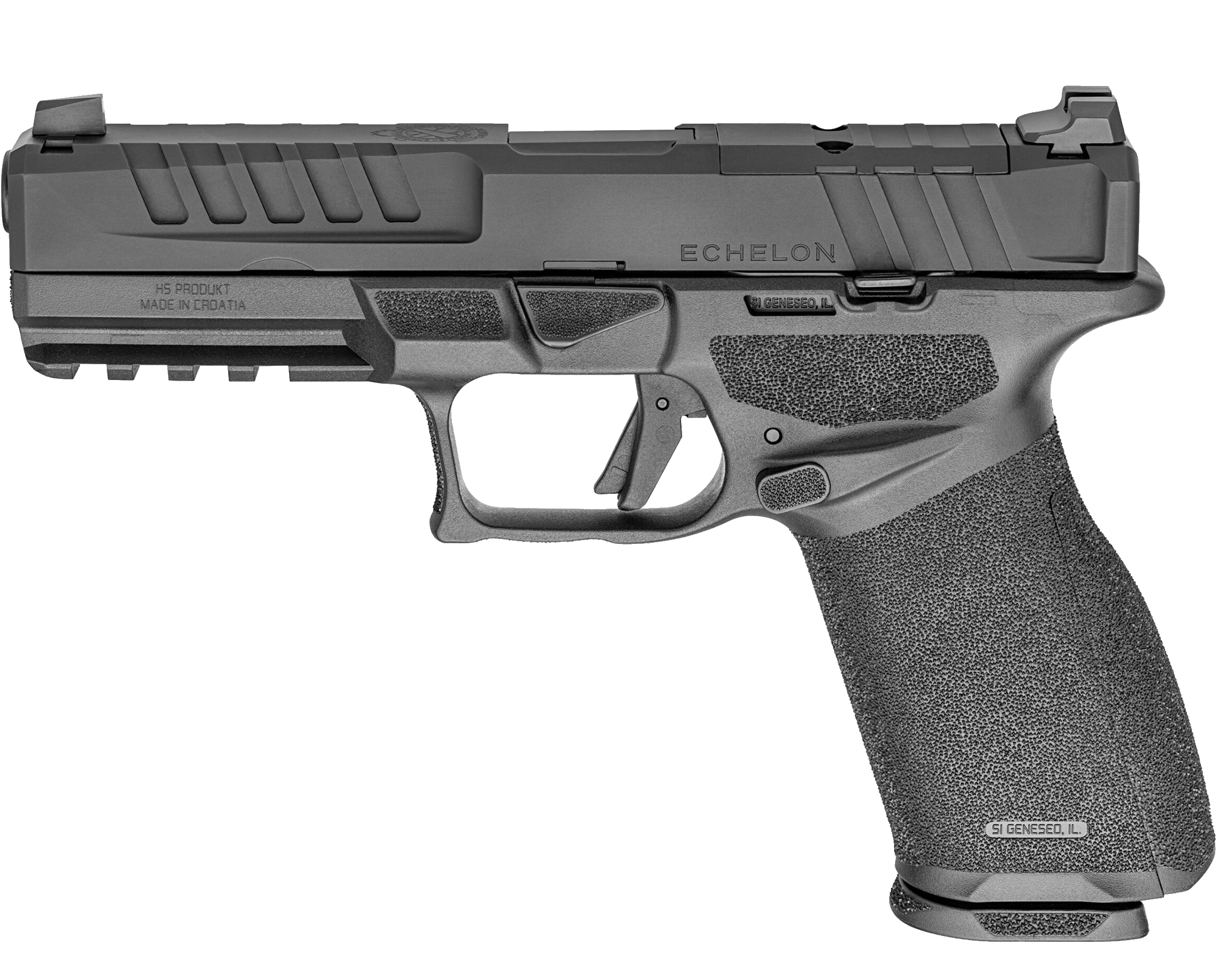

ECHELON 4.5 F
The Echelon™ sets a new standard for modern, striker-fired duty pistols. With a host of patent-pending features, this modular and highly adaptable handgun is designed around a robust stainless steel chassis and revolutionary optics mounting system.
Engineered with superior ergonomics and built to withstand the harshest conditions, the Echelon takes its rightful place at the front of the pack. At the heart of the Echelon lies the all-new Central Operating Group. Employing cutting edge manufacturing techniques, the Central Operating Group is entirely self-contained and serialized allowing it to be easily moved between grip modules in seconds. Precision built from stainless steel, the chassis provides a robust housing for its patent-pending operating system.

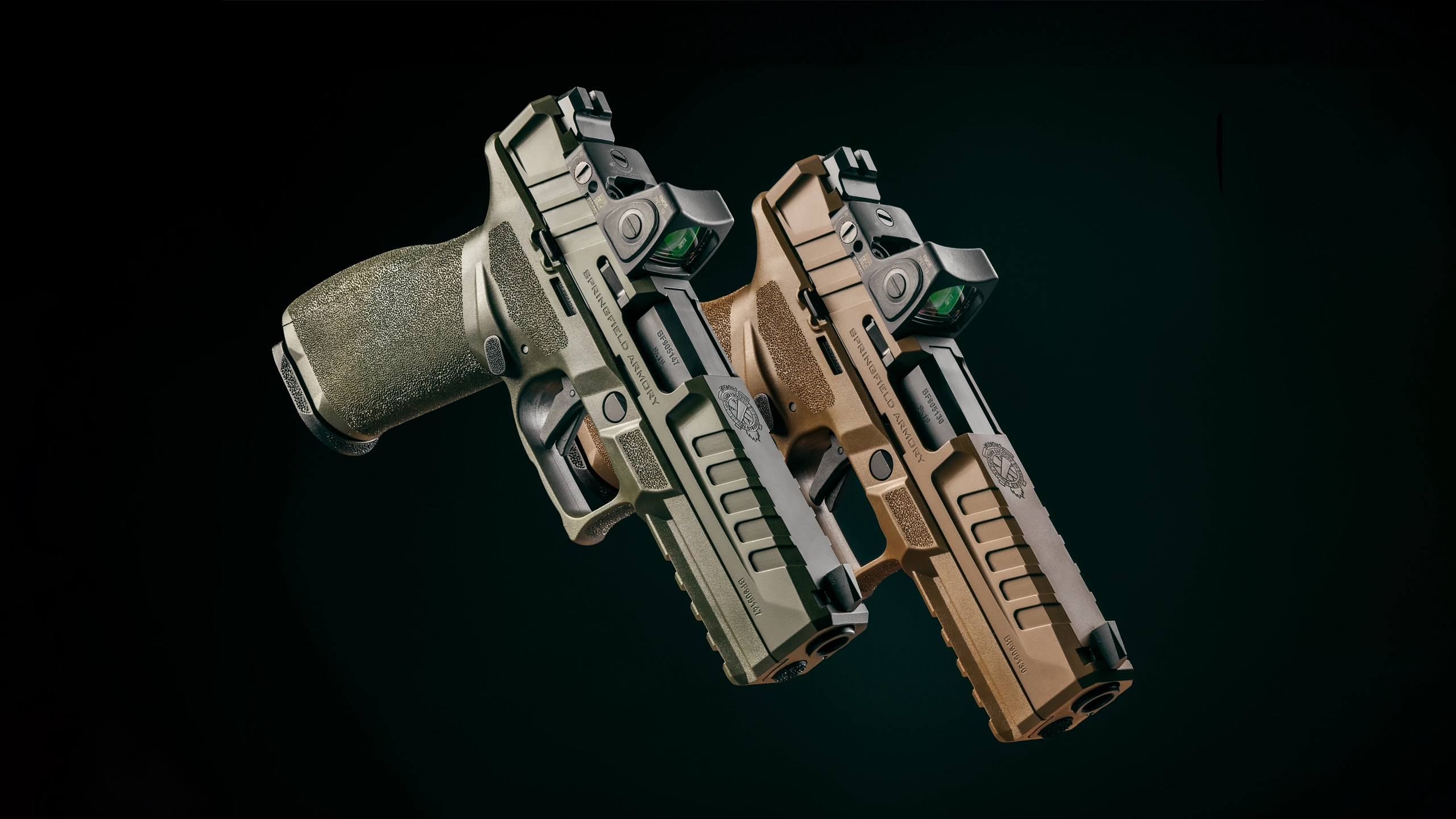

Concealed beneath the slide cover plate is the Echelon’s patent-pending optic mounting system. The Variable Interface System allows users to mount over 30 optics directly to the slide without the use of adapter plates.
The Echelon employs a newly developed magazine for rugged durability, hard use, and reliable operation. Blacked out in a scratch and wear-resistant coating, the magazine offers a 9mm capacity of 17+1 or 20+1.
Caliber 9x19mm
Barrel length 114,1 ±0,3 mm
Length 202,8 ±0,5 mm
Height 139,1 ±0,7 mm
Width 33,5 ±0,5 mm
Weight without magazine 665 ±15 g
Weight with empty magazine 749 ±15 g
Weight of empty 17rd magazine 84 ±5 g
Weight of empty 20rd magazine 96 ±5 g
Line of sight 166,6 ±0,5 mm

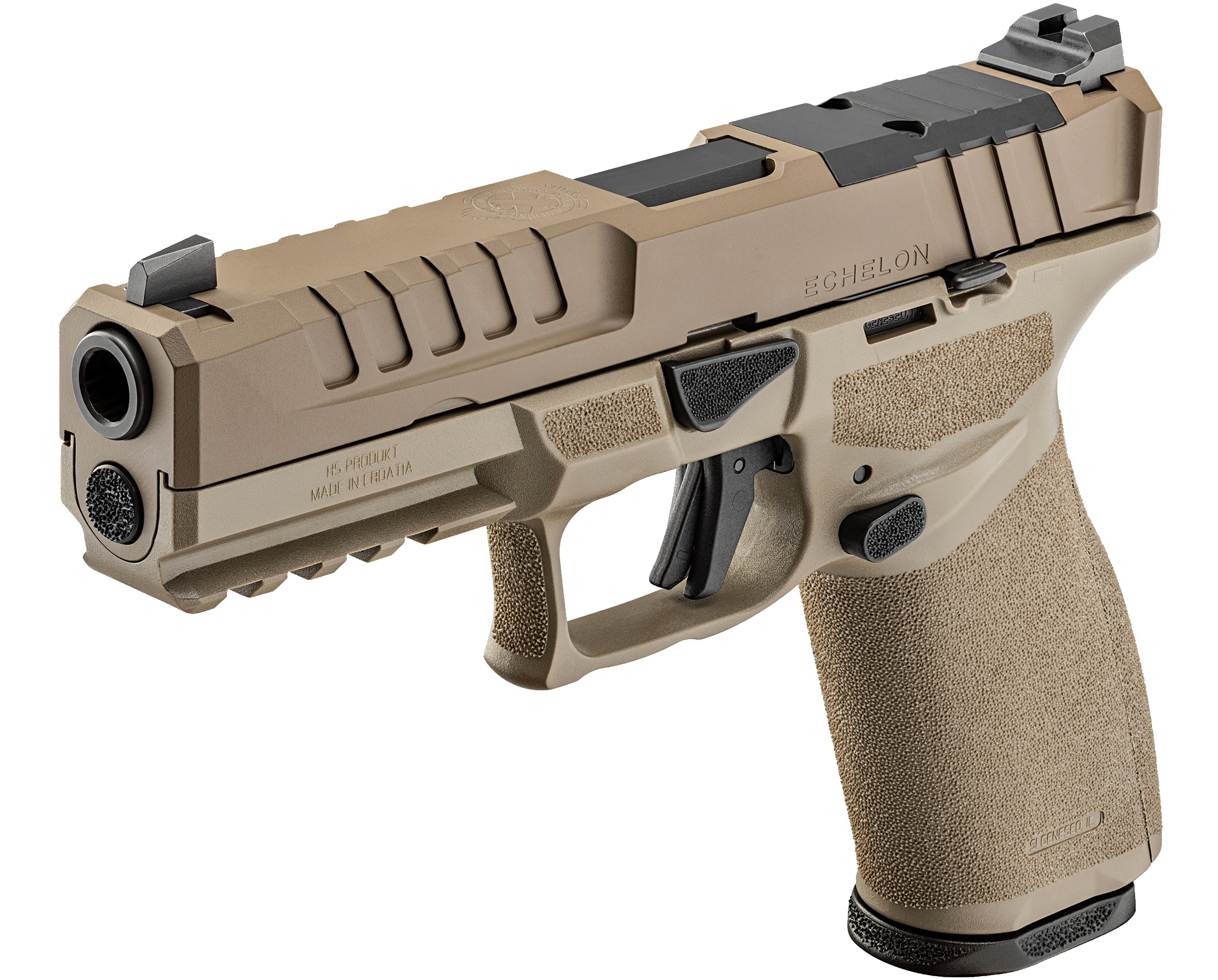

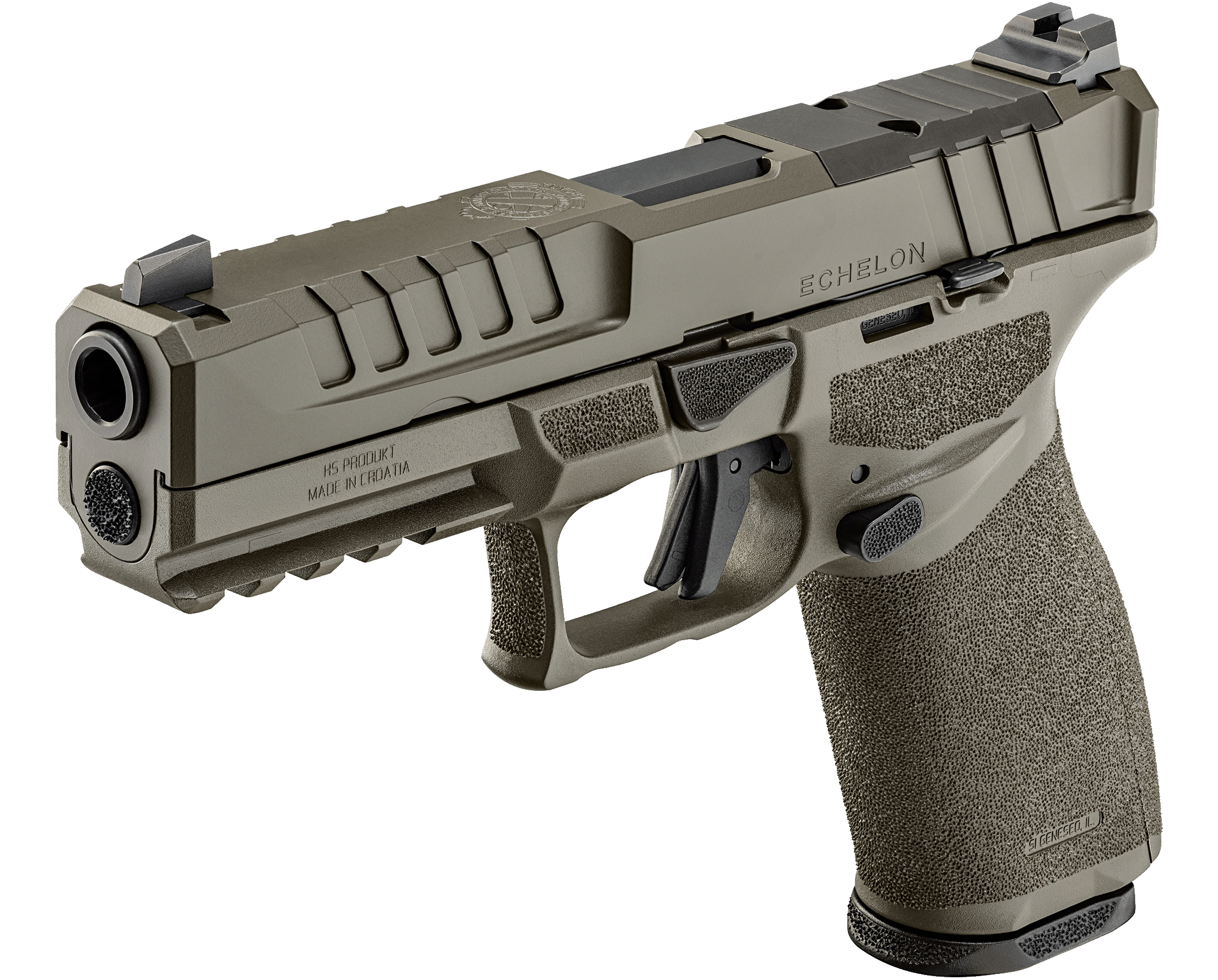

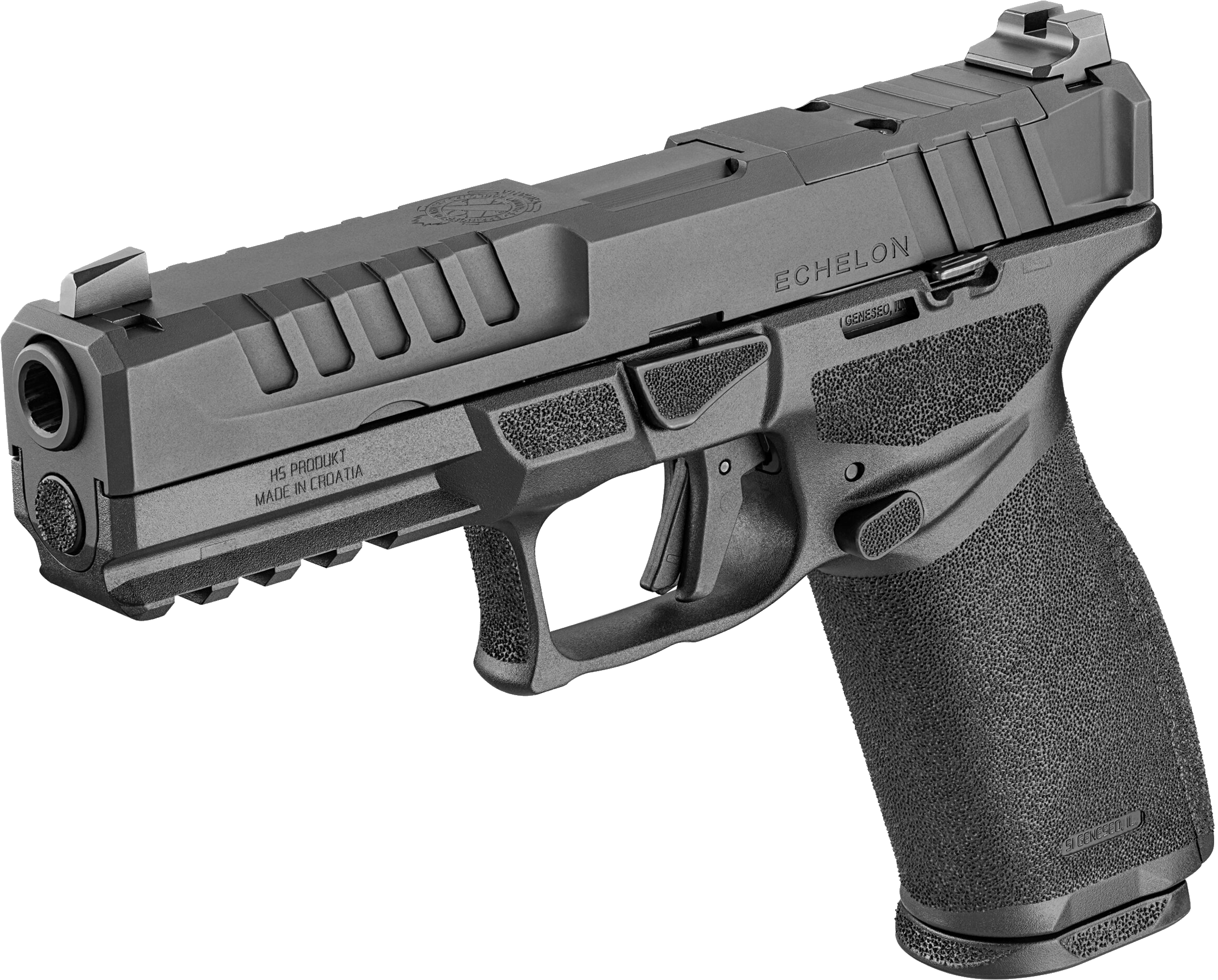

Color Black, Flat Dark Earth, OD Green
Slide Billet Machined, Optics Ready
Frame Black, Flat Dark Earth, OD Green Polymer
Front Sights U-Dot Tritium / Luminescent; 3-DOT Tritium
Rear Sights Tactical Rack U-Dot; 3-DOT Tritium
